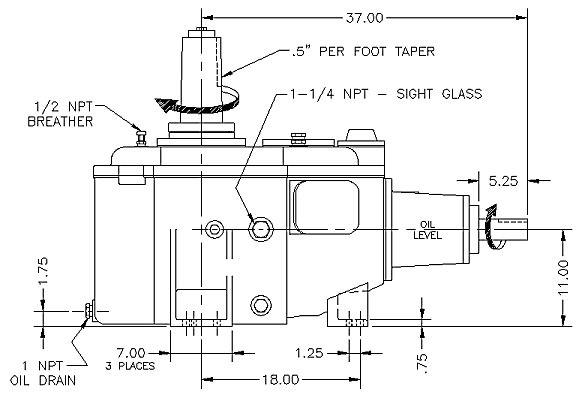

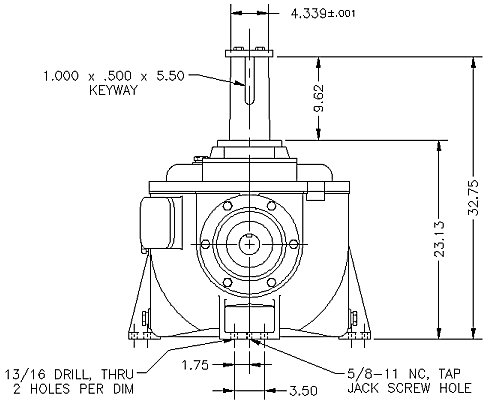

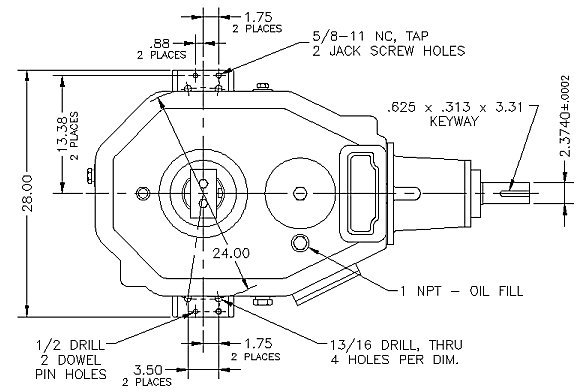

CTD-A32-S

Amarillo A-Series right angle gear reducer. This gear reducer is a drop in replacement for the Marley® 32 series and 3200 series gear reducer. The tapered shaft is standard for this model of gear, however a straight shaft is available upon request. It is also available with custom extended and tapered output shafts.

Brand New
In-Stock Price
$28,381.08
  • Marley Replacement Guide
  • Technical Information
  • Maintenance Manual
  • $2,608.32 Non-Reverse
  • $948.48 Oil Level Switch
  • $701.48 Pressure Switch
  • $691.60 Oil Filter
  • $563.16 Oil Heater and Thermostat
  • $444.60 Export Box
  • $98.80 304S.S. Ball Valve
